Roland JD-08 Sound Module

Roland JD-08 Sound Module
With its retro workflow, innovative sounds, and powerful effects, the JD-800 became a favorite among top electronic music producers from the 90s onwards. The JD-08 delivers the exquisite hands-on sound design of the original while adding modern enhancements—such as expanded polyphony that surpasses the original and a two-part polyphonic sequencer—by combining 108 waveforms with advanced modeling technology. The Roland JD-08 is a modern, portable instrument that faithfully recreates the Roland JD-800.

FEATURES
・Authentic sound and behavior of the original JD-800, realized through advanced modeling technology
・Features 108 waveforms to expand sound design possibilities
・Includes the original JD-800's 64 preset tones plus 21 new presets
・2-part, 64-step polyphonic sequencer with motion recording, random pattern generator, and 128-pattern memory
・Arpeggiator function
・2-part multitimbral capability with richer polyphony than the original
・Tone layering via a 4-part structure
・Recreation of the JD-800's unique dual-stage multi-effects section
・Includes distortion, phaser, spectrum, enhancer, delay, chorus, and reverb effects
・Complex, cutting-edge sounds achieved through multi-stage time-variant envelopes
・Palette sliders for quick parameter adjustment
・Equipped with USB audio/MIDI interface, full-size MIDI, and EXT CLOCK IN
・Portable design for use anywhere
・High-quality construction featuring a metal front panel
・Powered by batteries (4x AA) or USB-C
・Supports transmission and reception of MIDI and USB-C control signals
・Built-in powered speaker for instant enjoyment
・Compatible with the optional DK-01 Boutique Dock or K-25m Keyboard Unit

SPECIFICATIONS

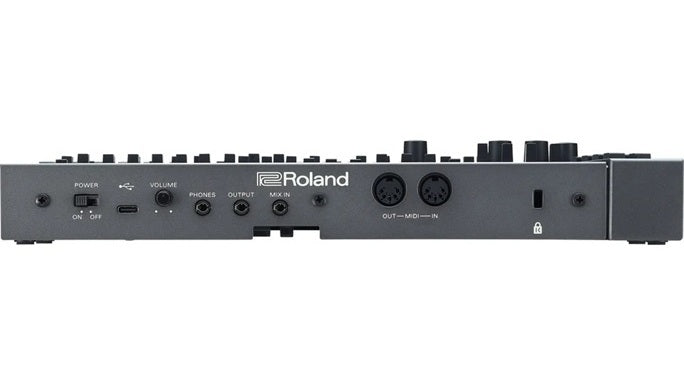

Connectors: EXT CLOCK IN jack (mono mini-type), PHONES jack (stereo mini-type), OUTPUT jack (stereo mini-type), MIX IN jack (stereo mini-type), MIDI (IN, OUT) jacks, USB port (USB Type-C®; supports audio and MIDI)
Power Supply: USB bus power (Note: AA batteries are classified as dangerous goods for air transport and are not included with the product.)
Current consumption: 500 mA (USB bus power)
Continuous battery life: Ni-MH batteries (AA size): Approx. 6 hours *Varies depending on battery specifications, capacity, and usage conditions.
