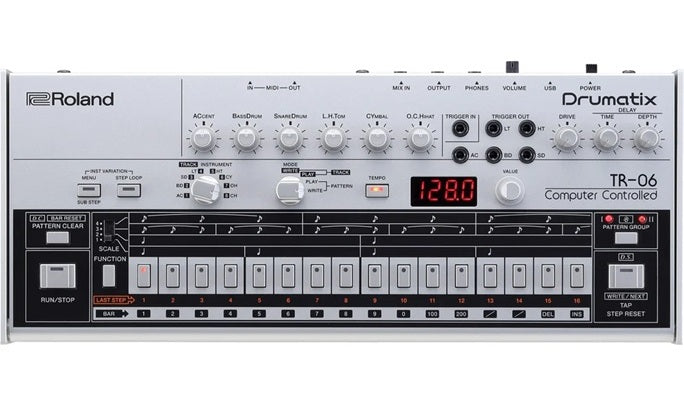

Roland TR-06 Drumatix

Roland TR-06 Drumatix
The TR-06 joins the Boutique series, bringing practical updates to Roland’s classic TR-606 rhythm machine. It faithfully reproduces the original model's distinctive sound and iconic look within a highly portable, compact housing. While retaining the features that made the original a favorite, it adds sound design parameters and an innovatively improved sequencer. It also comes equipped with multiple trigger outputs for controlling modular synthesizers and other Boutique series units, offering the performance expected of a modern rhythm machine.

FEATURES
・Faithful circuit-level reproduction of the TR-606 using ACB (Analog Circuit Behavior) technology
・Retains the TR-606’s distinctive sound and iconic design
・Adds parameters such as tuning, decay, pan, and gain
・Newly equipped with effects including compressor, delay, and overdrive
・Practical sequencer featuring sub-step, probability, and step loop functions
・Equipped with five trigger outputs and one trigger input for integration with modular gear and external devices
・Includes the DK-01 Dock, featuring a custom color to match the unit and three adjustable tilt angles
・Highly durable metal top panel and an excellent, portable design

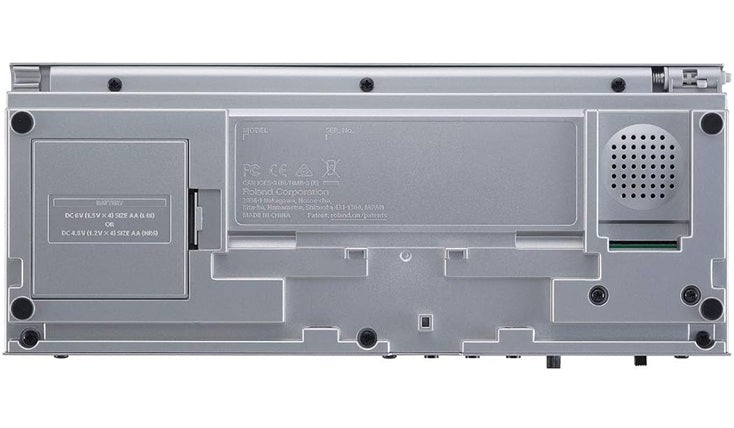

・Built-in speaker. Supports operation via four AA batteries or USB bus power

SPECIFICATIONS

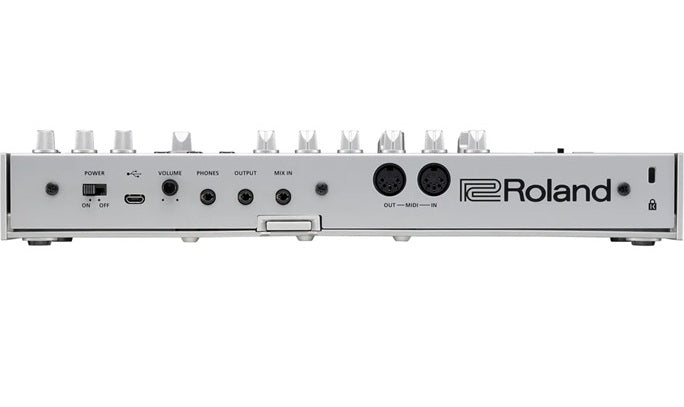

Connectors: TRIGGER IN jack: Mono mini type; TRIGGER OUT jacks x5 (AC, BD, SD, LT, HT): Mono mini type; PHONES jack: Stereo mini type; OUTPUT jack: Stereo mini type; MIX IN jack: Stereo mini type; MIDI (IN, OUT) jacks; USB port: USB Micro-B type (supports audio and MIDI)
Power Supply: USB bus power (Note: AA batteries are classified as dangerous goods for air transport and are not included with the product.)
Current Draw: 500 mA (USB bus power)
Expected battery life under continuous use: Ni-MH batteries (AA): Approx. 5 hours *Varies depending on battery specifications, capacity, and usage conditions.
Accessories: Boutique Dock (DK-01), Owner's Manual, DK-01 Owner's Manual
External dimensions: 308 mm (W) x 130 mm (D) x 52 mm (H)
